Evaluation Kit | STR-30-60V-BLDC-MDK-GEVK

1kW, 30-60V Motor Development Board

Jump to
Overview Evaluation/Development Tools Technical Documentation

Overview

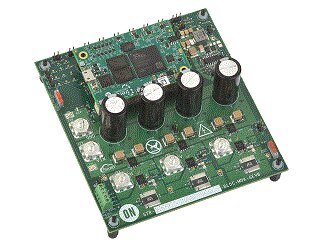

The STR-30-60V-BLDC-MDK-GEVK is a comprehensive motor development board and a reference design for drive low voltage 3-phase BLDC motors. The power board consists of 6 NTMFS6H800N MOSFETs for the inverter stage and NCP1034 PWM synchronous buck controller for power conversion. The 3-phase power board is rated for a maximum of 60V DC and consists of all necessary system blocks for a BLDC motor driver. As part of the motor development kit, the power board is compatible with the power Universal controller board enabling high-end control strategies and AI capabilities for industrial motor control. The complete kit is Strata enabled and the graphical user interface can be used to set control parameters for the motor drive.

The STR-30-60V-BLDC-MDK-GEVK comprises of the 1kW, 60V power board, hardware adapter for the UCB, and the Universal controller board (UCB)

For the Power board only, visit STR-30-60V-BLDC-MDK-GEVB

  • Industrial drives and Robots
  • Automated Guided Vehicles
  • Power Tools
  • Fans, Pumps, and Compressors
  • Power board for Motor Development Kit (MDK)
  • Compatible with the Universal Controller Board (UCB) FPGA/ARM
  • Fully compatible with Xilinx® development tools for Zynq®-7000
  • Strata Enabled
  • Downloadable Trapezoidal control use cases for the UCB
  • VIN: 30V - 60V DC
  • Compatible with three-phase BLDC motors
  • Over current protection (OCP), Over voltage protection (OVP)
  • Plug-in connector interface for MCU cards (Arduino DUE footprint)
  • Sensored Trapezoidal control strategy implemented
  • Strata enabled and available for a quick-start evaluation
  • Xilinx® development tools and environments are available for the MDK, such as Vitis and Vivado to program the FPGA

Technical Documentation

Name / Description

Document Type

Modified date

STR-30-60V-BLDC-MDK-GEVB Bill of Materials (ROHS Compliant)

STR-30-60V-BLDC-MDK-GEVB_BOM_ROHS.pdf

0

Eval Board: BOM

488.45 KB

EN

Eval Board: BOM

November 23, 2021

More Details

STR-30-60V-BLDC-MDK-GEVB Gerber Layout Files (Zip Format)

STR-30-60V-BLDC-MDK-GEVB_GERBER.zip

0

Eval Board: Gerber

1.37 MB

EN

Eval Board: Gerber

November 23, 2021

More Details

STR-30-60V-BLDC-MDK-GEVB User Guide

STR-30-60V-BLDC-MDK-GEVB_USER_GUIDE.pdf

0

Eval Board: Manual

1.22 MB

EN

Eval Board: Manual

November 23, 2021

More Details

STR-30-60V-BLDC-MDK-GEVB Schematic

STR-30-60V-BLDC-MDK-GEVB_SCHEMATIC.pdf

0

Eval Board: Schematic

2.44 MB

EN

Eval Board: Schematic

November 23, 2021

More Details

STR-30-60V-BLDC-MDK-GEVB Test Procedure

STR-30-60V-BLDC-MDK-GEVB_TEST_PROCEDURE.pdf

0

Eval Board: Test Procedure

11.69 MB

EN

Eval Board: Test Procedure

November 23, 2021

More Details

Show More
