Evaluation Kit | STR-1KW-MDK-GEVK

1kW 600V Industrial Motor Development Kit (MDK) with Compact Intelligent Power Module (IPM) board and Universal Controller Board (UCB)

Jump to
Overview Evaluation/Development Tools Technical Documentation

Overview

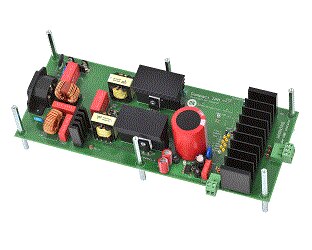

The STR-1KW-MDK-GEVK is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package, and part of the Motor Development Kit (MDK). Rated for 230 Vac input and delivering up to 850W. All the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter and measurement and protection. The graphical user interface ensures an easy startup for evaluation purposes running voltage/frequency control. As part of the MDK the Compact IPM power module motor drive is compatible with the powerful Universal Controller Board (UCB) enabling high-end control strategies and AI capabilities for industrial motor control. The STR-1KW-MDK-GEVK comprises of the SECO-1KW-MCTRL-GEVB, the hardware adaptor to the UCB and the Universal Controller Board (UCB).

• The SECO-1KW-MCTRL-GEVB is orderable separately as well.

  • White Goods (Washing Machines)
  • Industrial Fans
  • Industrial Automation
  • Industrial Motor Control
  • Motor Development Kit (MDK)
  • Compatible with the Universal Controller Board (UCB) FPGA/ARM
  • Fully compatible with Xilinx® development tools for Zynq®-7000
  • Strata Enabled
  • Downloadable V/f and FOC control use cases for the UCB
  • 850W Intelligent Power Module (IPM) three-phase motor driver
  • VIN: 230 Vac,rms ± 15% (single-phase)
  • IOUT: Irms 10 ARMS per phase
  • Compatible with three-phase motors: PMSM, BLDC or ACIM
  • DIP/6 IPM NFAQ1060L36T, three-phase/10A with integrated gate drivers
  • Cross-conduction, overcurrent and thermal protection embedded in DIPS6 module
  • Plug-in connector interface for MCU cards (Arduino DUE footprint)
  • Voltage/frequency control strategy implemented
  • NCS2250SN2T3G: Push Pull Output Comparator implemented in ITRIP protection system
  • Use case pre-loaded and Strata enabled available for a quick-start evaluation
  • Xilinx® development tools and environments are available for the MDK, such as Vitis and Vivado to program the FPGA

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Action

STR-1KW-MDK-GEVK

1kW 600V Industrial Motor Development Kit (MDK) with Compact Intelligent Power Module (IPM) board and Universal Controller Board (UCB)

Evaluation Kit

No

Active

1N5406RLG,

FCPF125N65S3,

FFSPF1065A,

GBU6K,

MMBT589LT1G,

MMSD4148T1G,

MRA4007T3G,

MURA160T3G,

NCP1063AP060G,

NCP1632DR2G,

NCS2003SN2T1G,

NFAQ1060L36T,

NTSS3100T3G,

TLV431CSN1T1G

Price N/A

More Details

Show More

1-25 of 25

Products per page

Jump to :

1

Technical Documentation

Name / Description

Document Type

Modified date

STR-1KW-MDK-GEVK User Guide

STR-1KW-MDK-GEVK_USER_GUIDE.pdf

0

Eval Board: Manual

2.44 MB

EN

Eval Board: Manual

December 02, 2021

More Details

STR-1KW-MDK-GEVK Gerber Layout Files (Zip Format)

STR-1KW-MDK-GEVK_GERBER.zip

0

Eval Board: Gerber

10.49 MB

EN

Eval Board: Gerber

December 02, 2021

More Details

STR-1KW-MDK-GEVK Schematic

STR-1KW-MDK-GEVK_SCHEMATIC.pdf

0

Eval Board: Schematic

1.68 MB

EN

Eval Board: Schematic

December 02, 2021

More Details

STR-1KW-MDK-GEVK Bill of Materials (ROHS Compliant)

STR-1KW-MDK-GEVK_BOM_ROHS.pdf

0

Eval Board: BOM

495.62 KB

EN

Eval Board: BOM

December 02, 2021

More Details
