Application daughter-card for NCD57000 IGBT gate driver

Overview

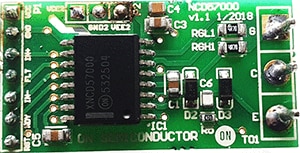

The SECO-NCD57000-GEVB includes an isolated high current and high efficiency IGBT Gate Driver NCD57000 and all the necessary drive circuitry. The EVB also includes The ability to solder any MOSFET or SiC MOSFET in a TO-247 high voltage package in both SMD and THT.

This daughter card is compatible with the SECO-GDBB-EVB gate drivers baseboard, which allows testing up to 3 daughter cards simultaneously and comparing performances.
