SEC-3PH-11-OBC-EVB

Jump to

Overview Evaluation/Development Tools Technical Documentation Training & Related Media

Overview

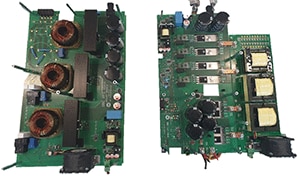

The SEC-3PH-11-OBC-EVB is a three-phase On Board Charger (OBC) reference design platform achieving state-of-the-art system efficiency with AEC qualified SiC power devices and drivers. The system boasts the high performance SiC MOSFET 1200 V, 80 m? (NVHL080N120SC1), SiC MOSFET Gate driver 6A (NCV51705) and SiC Diode 650 V, 30 A (FFSB3065B-F085). For test data results, the LLC system was driven in voltage or current control modes by embedded software. This reference design provides internal test results, as well as the files needed to copy the hardware design. The GUI software is provided as a reference only and the embedded software is not provided. Ultimately, SEC-3PH-11-OBC-EVB serves as a strong starting point for a customer design incorporating three-phase AC/DC power conversion. Visit the On Board Charging solutions site to learn how onsemi can accelerate your design with our innovative portfolio.

Application

On board charger (OBC)
EV Charging
3-Ph AC/DC conversion

Feature

AEC-Q qualified SiC power devices and drivers
DC/DC LLC full bridge
Executable software FOC (Vector Control), CC and CV
GUI
Input Voltage - 195-265 Vac
DC Bus Max - 735 Vdc
Output Voltage - 200-450 Vdc
Output Current - 0-40A
fs max. 400 kHz

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Action

SEC-3PH-11-OBC-EVB

Three-phase On Board Charger (OBC) PFC-LLC platform

Evaluation Board

Active

FFSB3065B-F085,

NCV210RSQT2G,

NCV333ASN2T1G,

Price N/A

Technical Documentation

Name / Description

Document Type

Modified date

SEC-3PH-11-OBC-EVB Evaluation Board User's Manual

EVBUM2673/D

Eval Board: Manual

8.6 MB

Eval Board: Manual

July 01, 2020

SEC-3PH-11-OBC-EVB_PFC Bill of Materials (ROHS Compliant)

SEC-3PH-11-OBC-EVB_PFC_BOM_ROHS

Eval Board: BOM

688.13 KB

Eval Board: BOM

October 01, 2019

SEC-3PH-11-OBC-EVB Manufacturing Files

SEC-3PH-11-OBC-EVB_Manufacturing_Files

Eval Board: Gerber

59.88 MB

Eval Board: Gerber

January 01, 2021

SEC-3PH-11-OBC-EVB_LLC Bill of Materials (ROHS Compliant)

SEC-3PH-11-OBC-EVB_LLC_BOM_ROHS.rev0

Eval Board: BOM

659.46 KB

Eval Board: BOM

October 01, 2019

OBC_LLC_resonant_tank_WE_3D_Schematic

Eval Board: Schematic

4.2 MB

Eval Board: Schematic

October 01, 2019

SEC-3PH-11-OBC-EVB_LLC Graphical User Interface

SEC-3PH-11-OBC-EVB_LLC_GUI

Software

31.72 MB

Software

September 01, 2020

OBC_LLC_switch_board_3D_Schematic

Eval Board: Schematic

11.27 MB

Eval Board: Schematic

October 01, 2019

OBC_PFC_control_Schematic

Eval Board: Schematic

2.02 MB

Eval Board: Schematic

October 01, 2019

OBC_LLC_resonant_tank_WE_Schematic

Eval Board: Schematic

4.46 MB

Eval Board: Schematic

October 01, 2019

OBC_PFC_power_3D_Schematic

Eval Board: Schematic

20.68 MB

Eval Board: Schematic

October 01, 2019

On Board Charger (OBC) LLC Converter

TND6318/D

Reference Designs

4.6 MB

Reference Designs

September 01, 2019

OBC_LLC_switch_board_Schematic

Eval Board: Schematic

10.89 MB

Eval Board: Schematic

October 01, 2019

OBC_PFC_power_Schematic

Eval Board: Schematic

1.99 MB

Eval Board: Schematic

October 01, 2019

SiC_driver_board_Schematic

Eval Board: Schematic

220.16 KB

Eval Board: Schematic

October 01, 2019

SiC_driver_board_3D_Schematic

Eval Board: Schematic

464.9 KB

Eval Board: Schematic

October 01, 2019

On Board Charger (OBC) Three-phase PFC Converter

AND9957/D

Application Notes

1.23 MB

Application Notes

August 01, 2021
